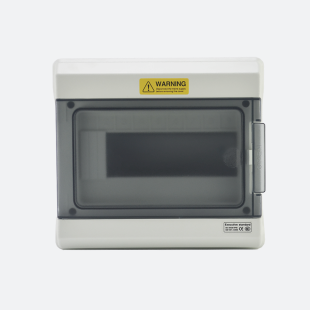

NAAKUU HT Series 15Way Outdoor Waterproof Electrical Circuit Breaker MCB Power Plastic Distribution Wire Box
NAAKUU HT Series 15Way Outdoor Waterproof Electrical Circuit Breaker MCB Power Plastic Distribution Wire Box
| Categories | Distribution Box |
|---|---|
| Brand | NAAKUU Electrical Equipment Manufacturer |
| Model | NK-HT 15Way |
| Body Material：ABS&PC | N.Weight：17.5KG |
| IP:65 | Installation：Inside，Outside |
| Outside Dimenstion：305*195*105mm | Certificates：CE,ROHS |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Update Time | Dec 22,2024 |
Surface Distribution Box
Body material: ABS
Transparent door: PC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: IP65
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1,Inside: There are din rail inside for din-rail type circuit breakers, earth
bar and natural bar for cable connection.
2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off for cables.
Model Code | Outside Dimenstion | G.Weight（KG） | N.Weight（KG） | Qty/Carton | Carton Dimenstion （cm） | ||
L | W | H | |||||
NK-HT 5Way | 115 | 150 | 90 | 13 | 11.9 | 40 | 49*33*48 |
NK-HT 8Way | 197 | 150 | 90 |
14.2
|
13.2
|
30
|
48*41.5*48.5
|
NK-HT 12Way | 250 | 193 | 105 | 16.3 | 15.3 | 20 | 52.5*40.5*47 |
NK-HT 15Way | 305 | 195 | 105 | 18.5 | 17.5 | 20 | 63*40.5*57 |
NK-HT 18Way | 360 | 198 | 105 | 20.4 | 19.4 | 20 | 74*40.5*57 |
NK-MF 24Way | 270 | 350 | 105 | 14.6 | 13.6 | 15 | 56.5*36.5*56.5 |
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
